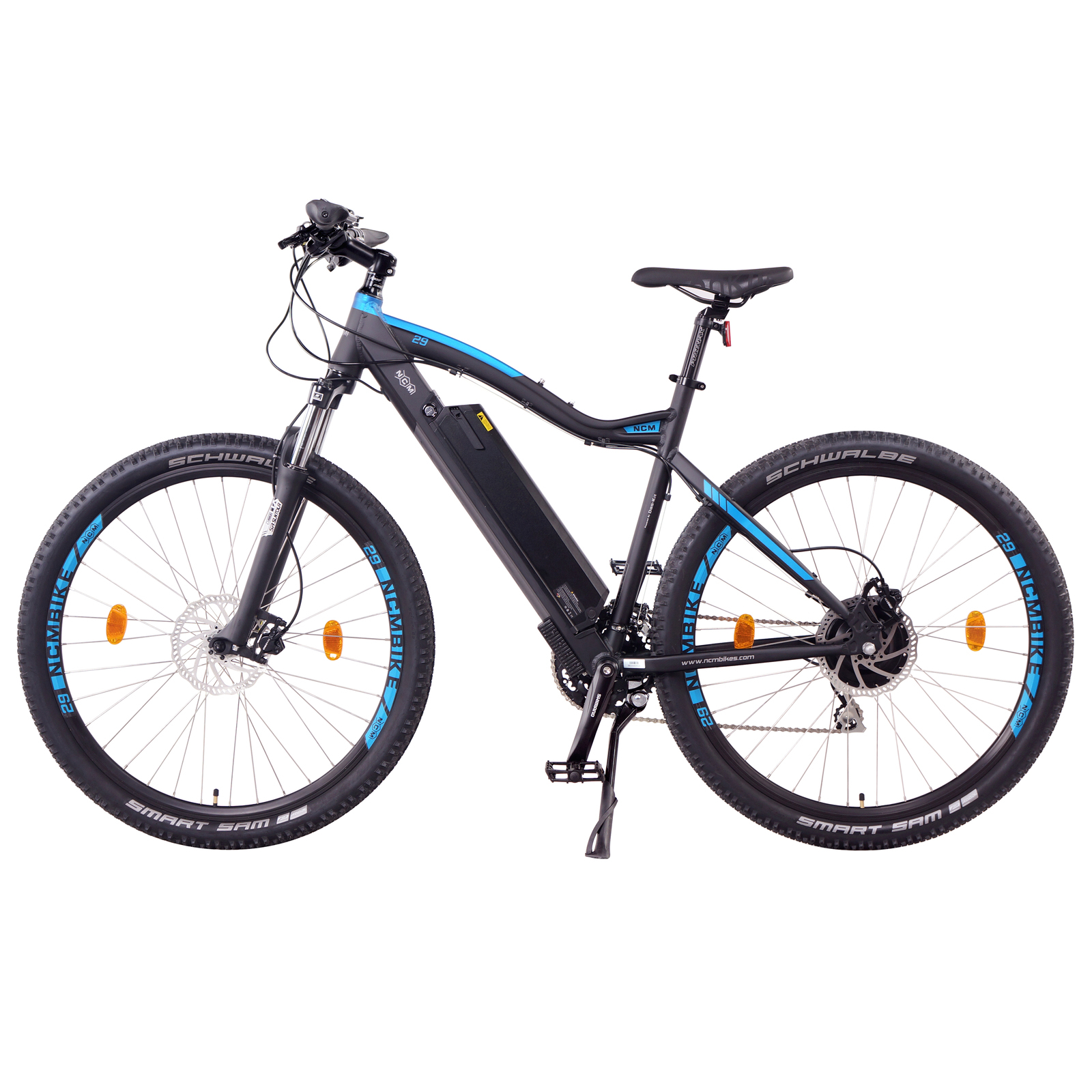

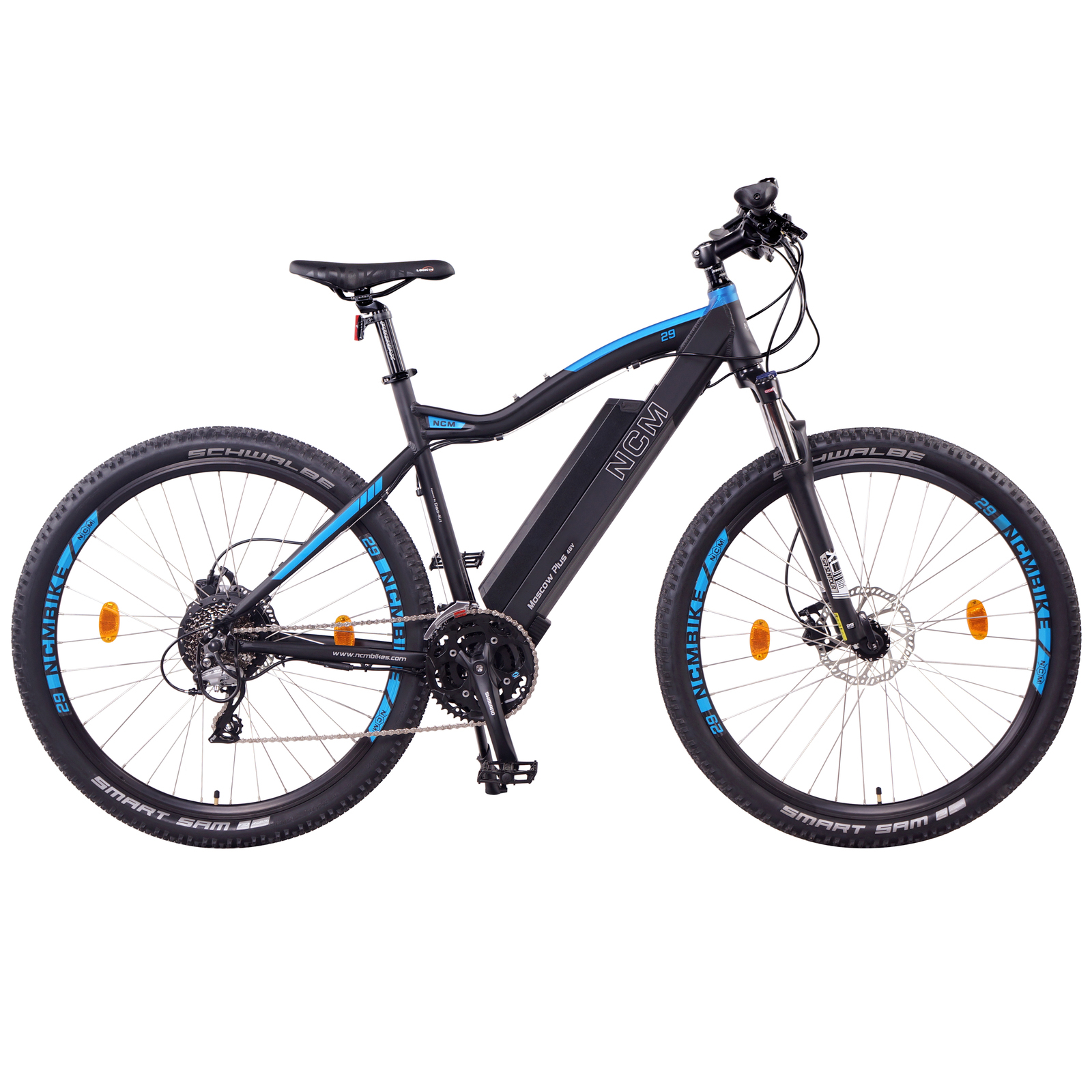

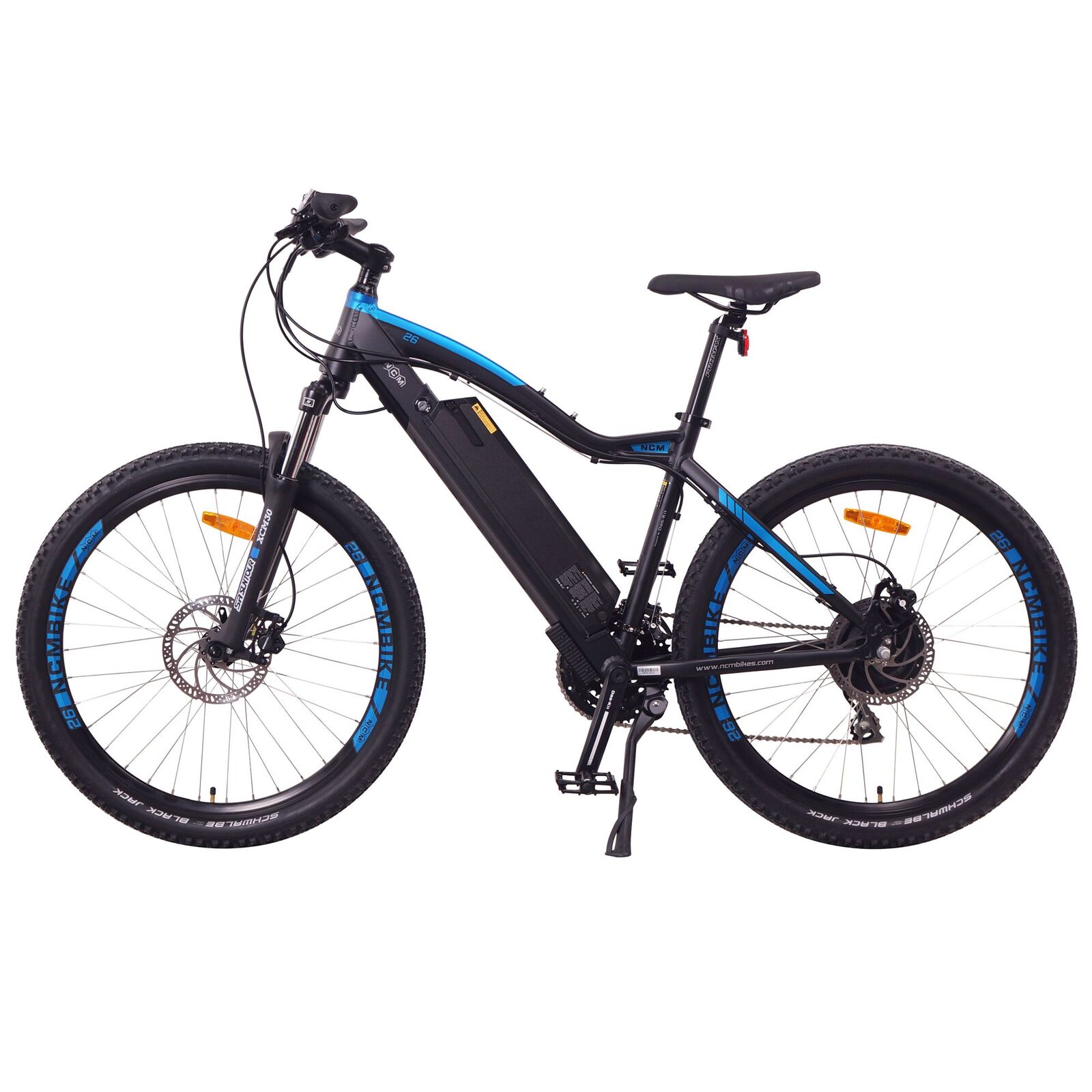

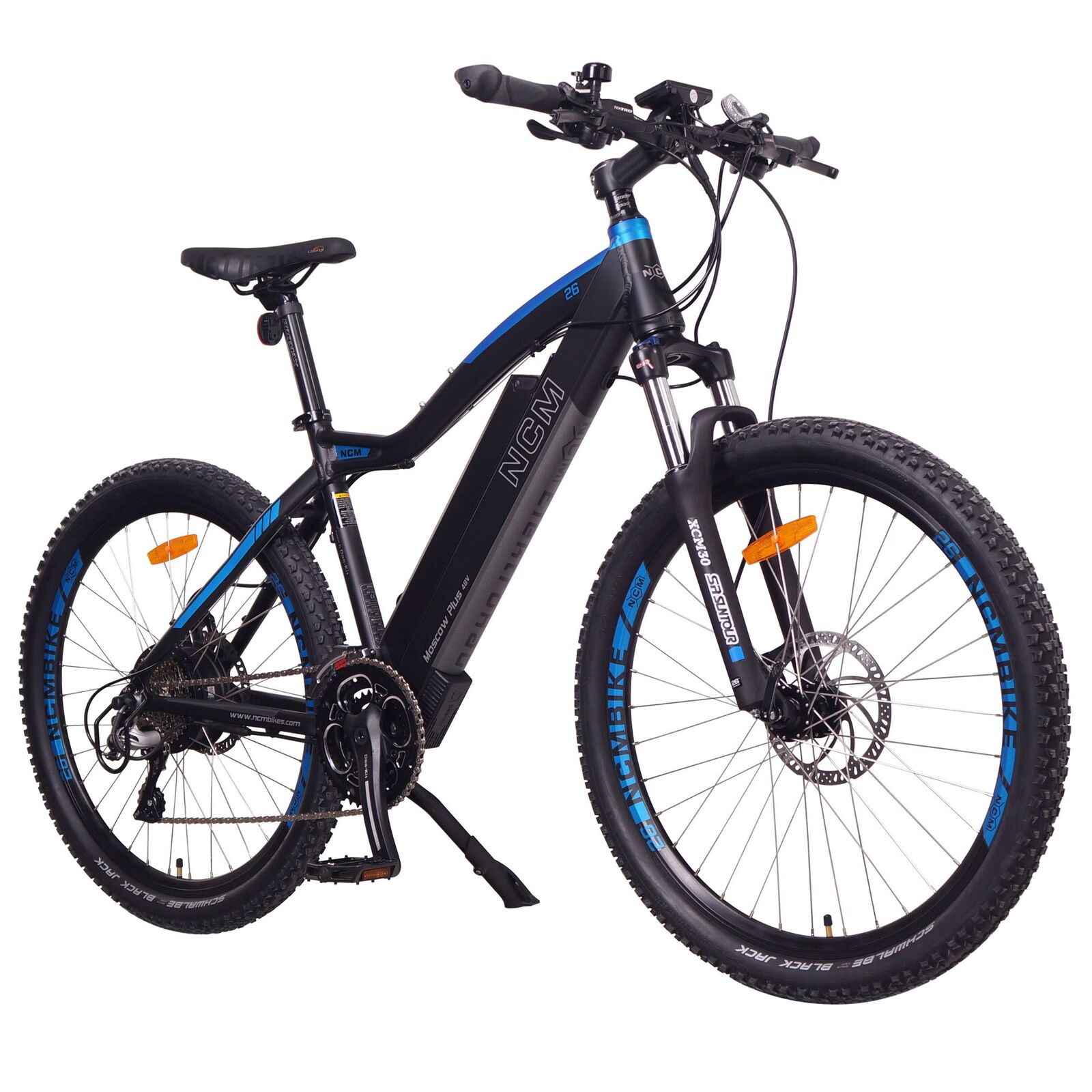

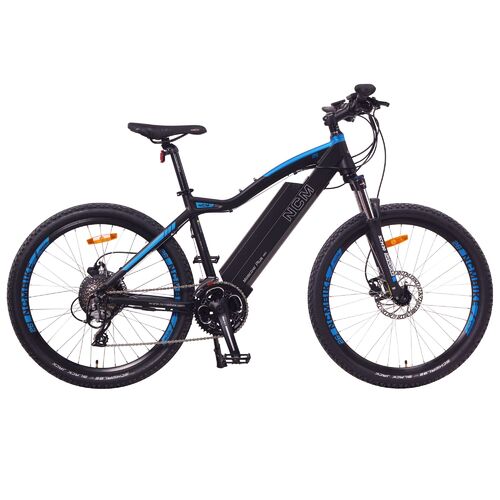

NCM Moscow Plus


Introduction

Rugged and capable, the NCM Moscow Plus is hugely versatile. Focusing on usability and capability, this E-bike is designed with a tough aluminium frame, and a strong rigid handlebar and saddle for improved ergonomics and performance. The high top tube, while makes the bike sturdy and strong allowing the power you put down to be effectively transferred to the road.


Key Features

  • Ergonomic bicycle Grips
  • Comfortable sitting posture
  • All important controls easily accessible
  • Supplied with 48V to deliver a high output power
  • Up to 500W Peak Motor Power
  • Over 768Wh capacity for a longer distance
  • Up to 150 km Battery Range (depending on terrain conditions & power level settings)

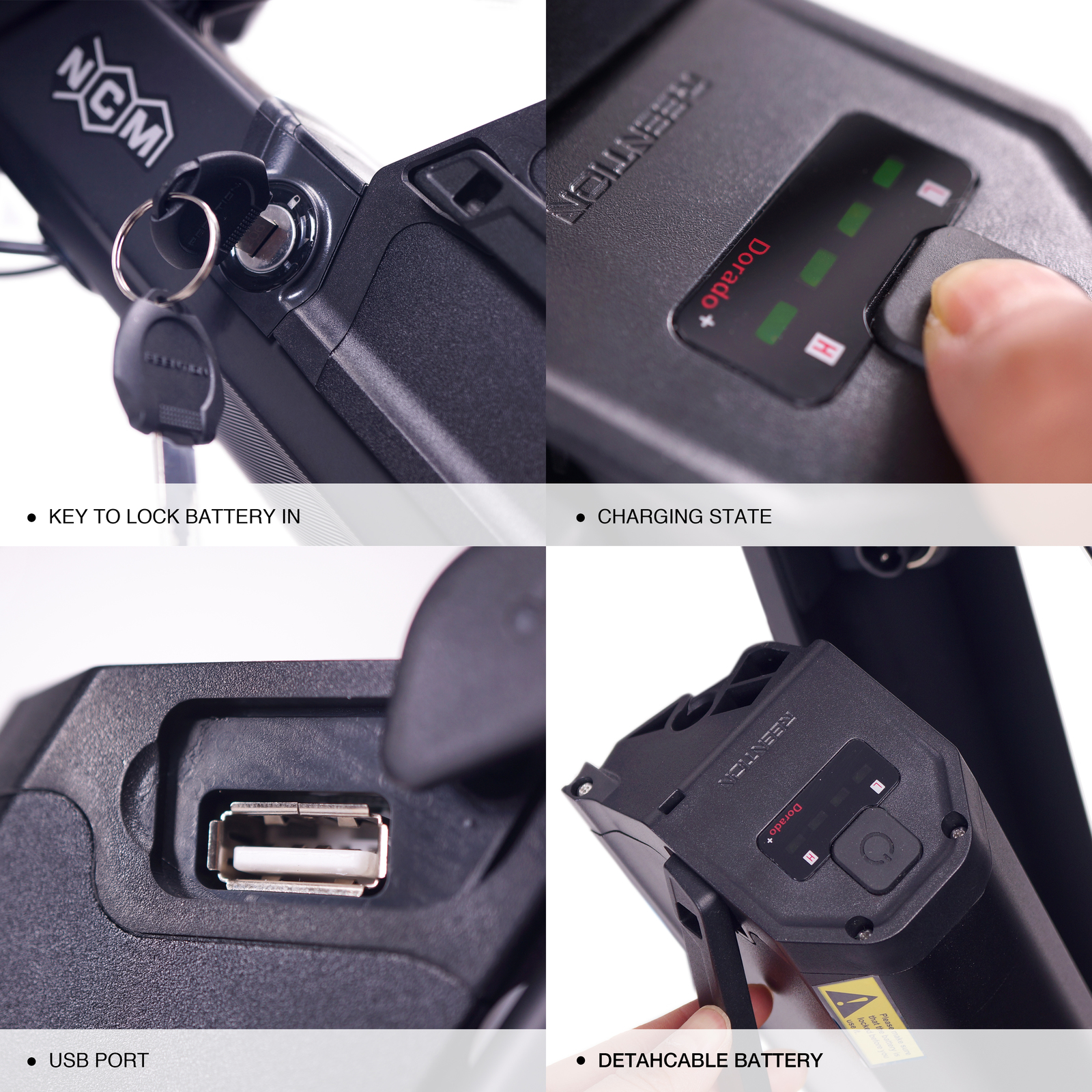

  • Battery integrated in the frame for better aesthetics
  • Easily removable battery so you can charge it anywhere
  • A built-in USB port with 5V to charge mobile phones
  • Equipped with Throttle and Pedal assist.

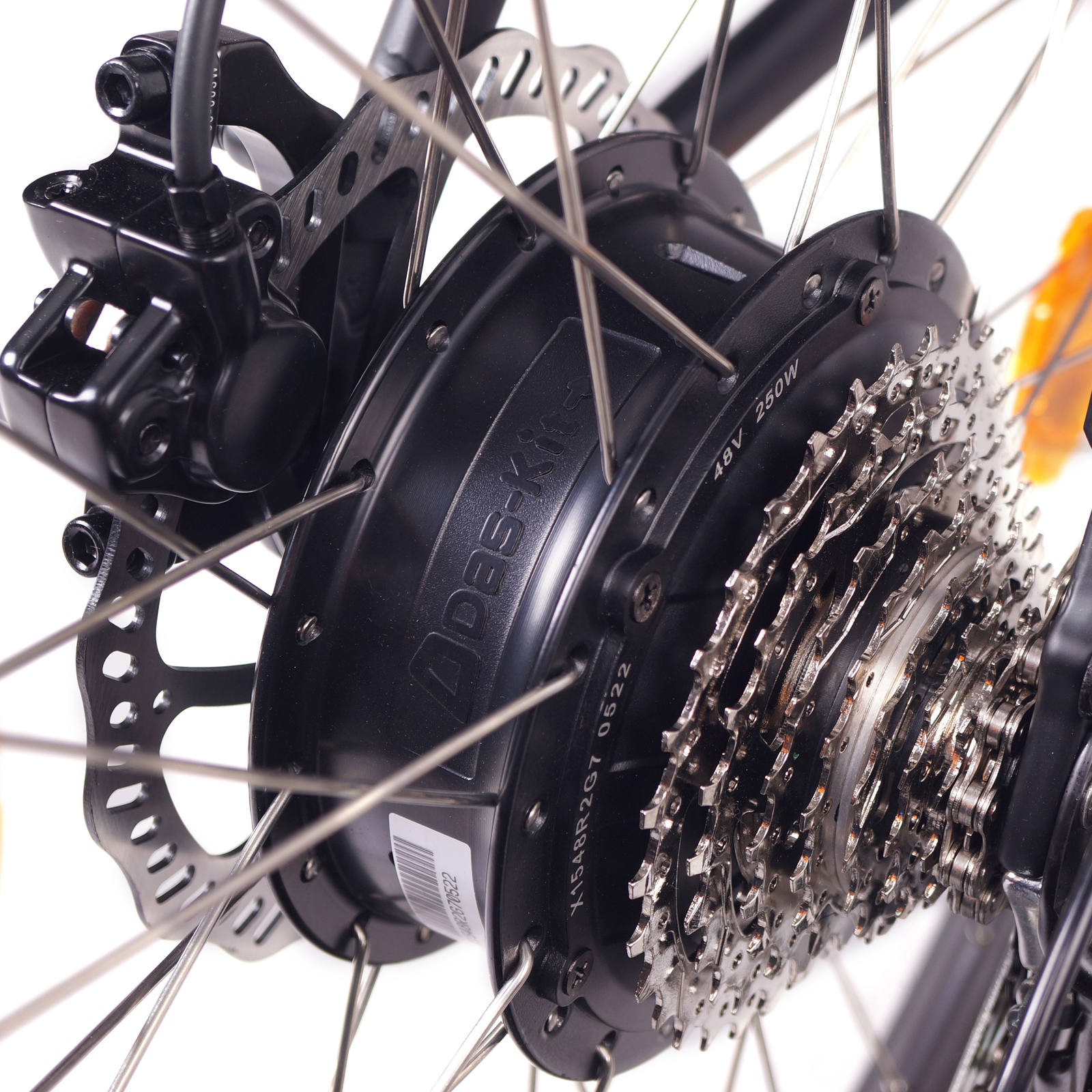

Das-Kit 300W-500W Motor

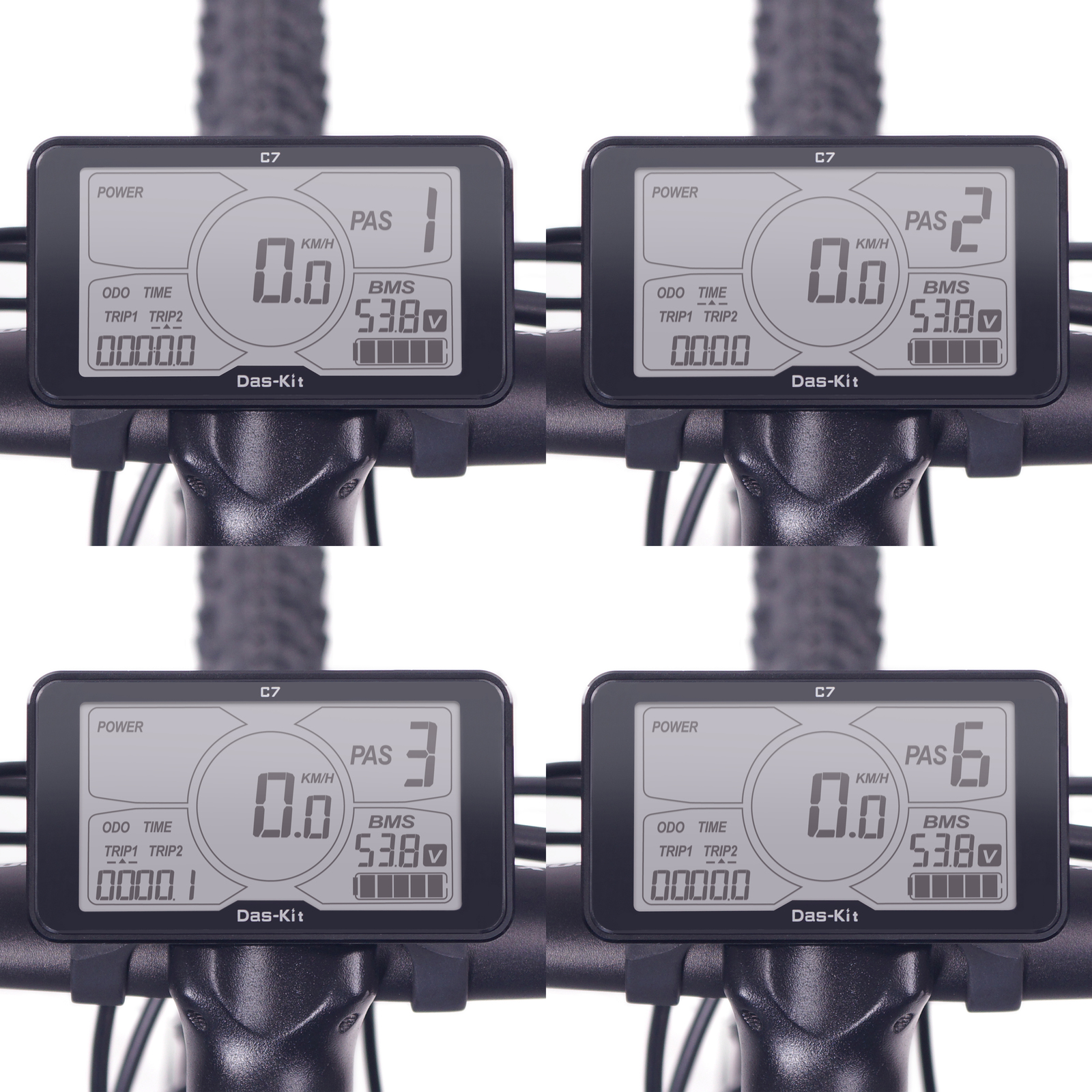

Das-Kit C7 Display controls

48V battery with USB

Schwalbe Tyres

Specifications

  Moscow Plus Moscow Moscow M3
Motor Das-Kit X15 motor, 48V, 300W,
500W Peak Power, max speed 32 km/h

Das-Kit X2 motor, 48V, 300W,
500W Peak Power, max speed 32 km/h

 Das-Kit X15 motor, 48V, 300W,
500W Peak Power, max speed 32 km/h
Battery DEHAWK, I5, 48V 16Ah, 768Wh with USB Port DEHAWK, I5, 48V 13Ah, 624Wh with USB Port Das-Kit, I6, 48V 12Ah, 576Wh
Display Das-Kit C7 Advanced, LCD Display Das-Kit L7, LCD Display Das-Kit L7, LCD Display

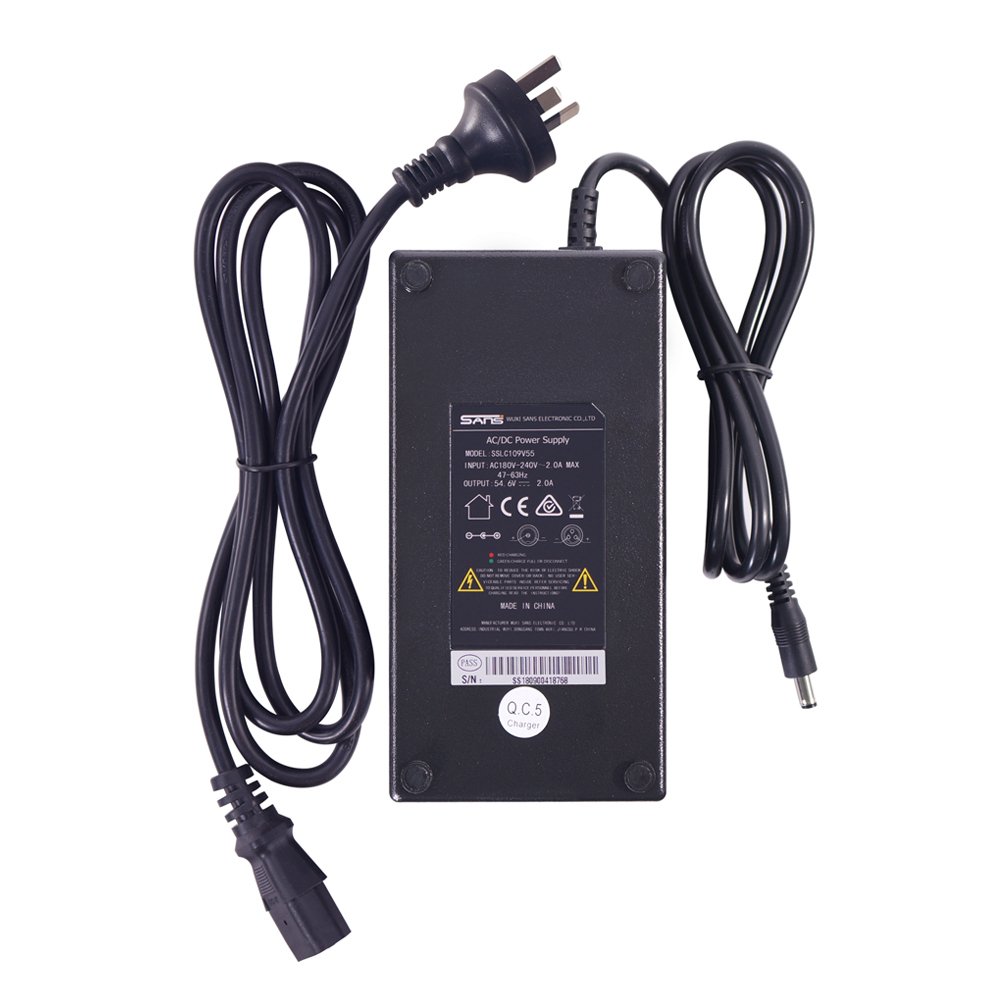

Charger SANS 48V 2A SANS 48V 2A Das-Kit, 48V 2A
Frame Alu. 6061, 19/20*480/510MM Alu. 6061, 19/20*480/510MM Alu. 6061 26"*460MM | 27.5"*480MM | 29"*520MM
Forks SUNTOUR XCM  SUNTOUR XCT SUNTOUR XCT
Braking System Tektro Hydraulic Disc Tektro Mechanical Disc Tektro Disc

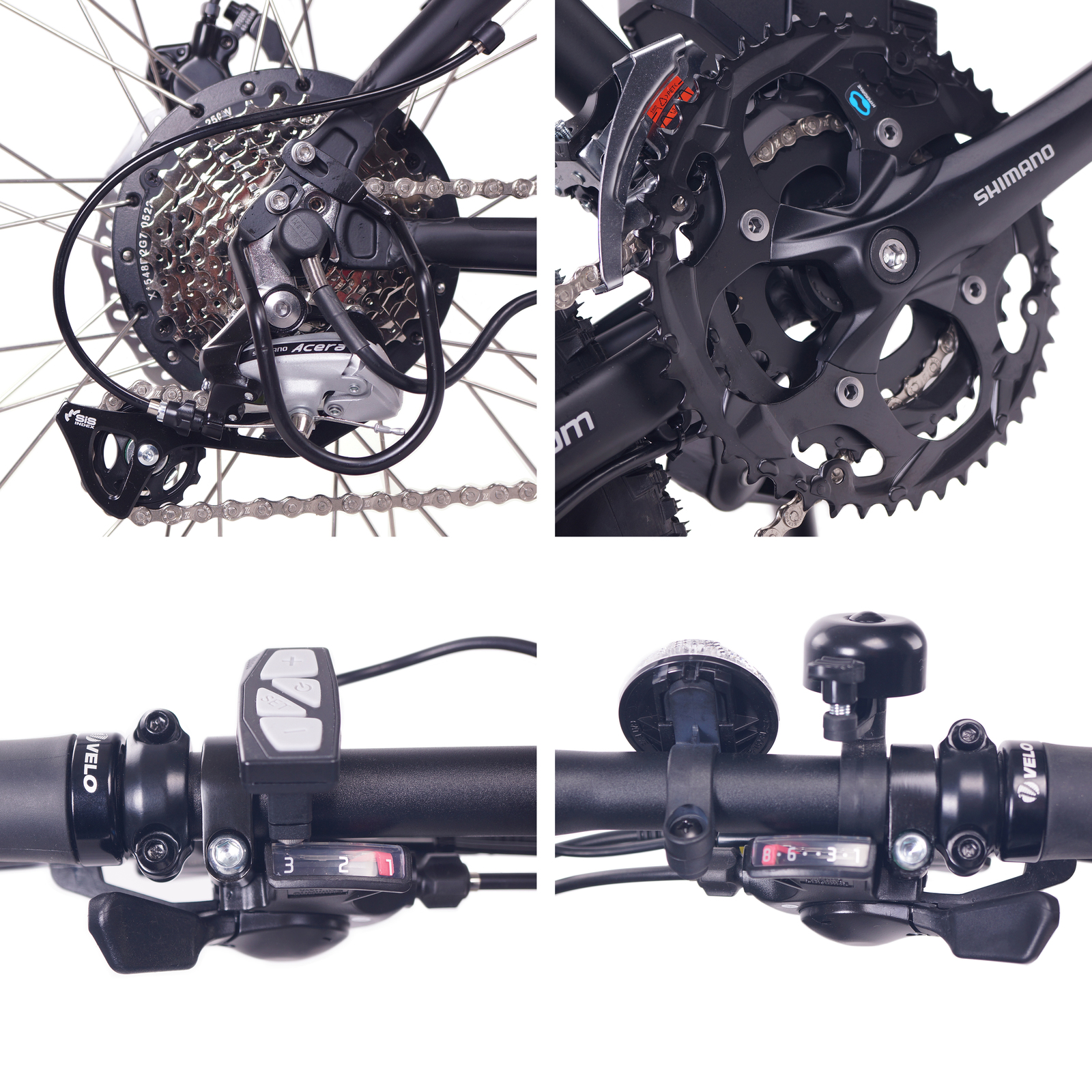

Gear Selector Shimano Acera 8 speed Shimano Altus 7 speed Shimano Altus 7 speed
Front Derailleur Shimano Acera Triple Shimano Altus Triple Shimano Altus Triple

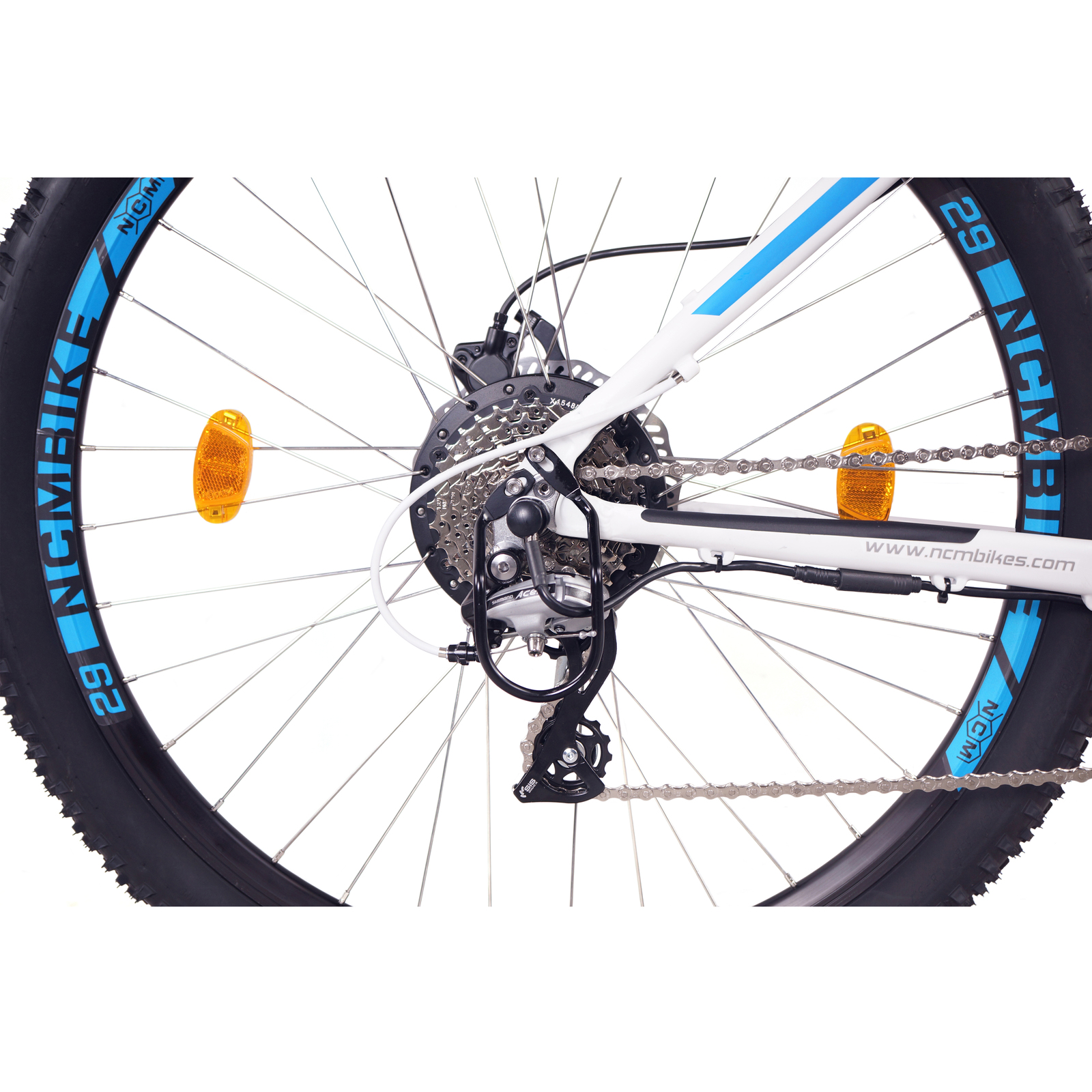

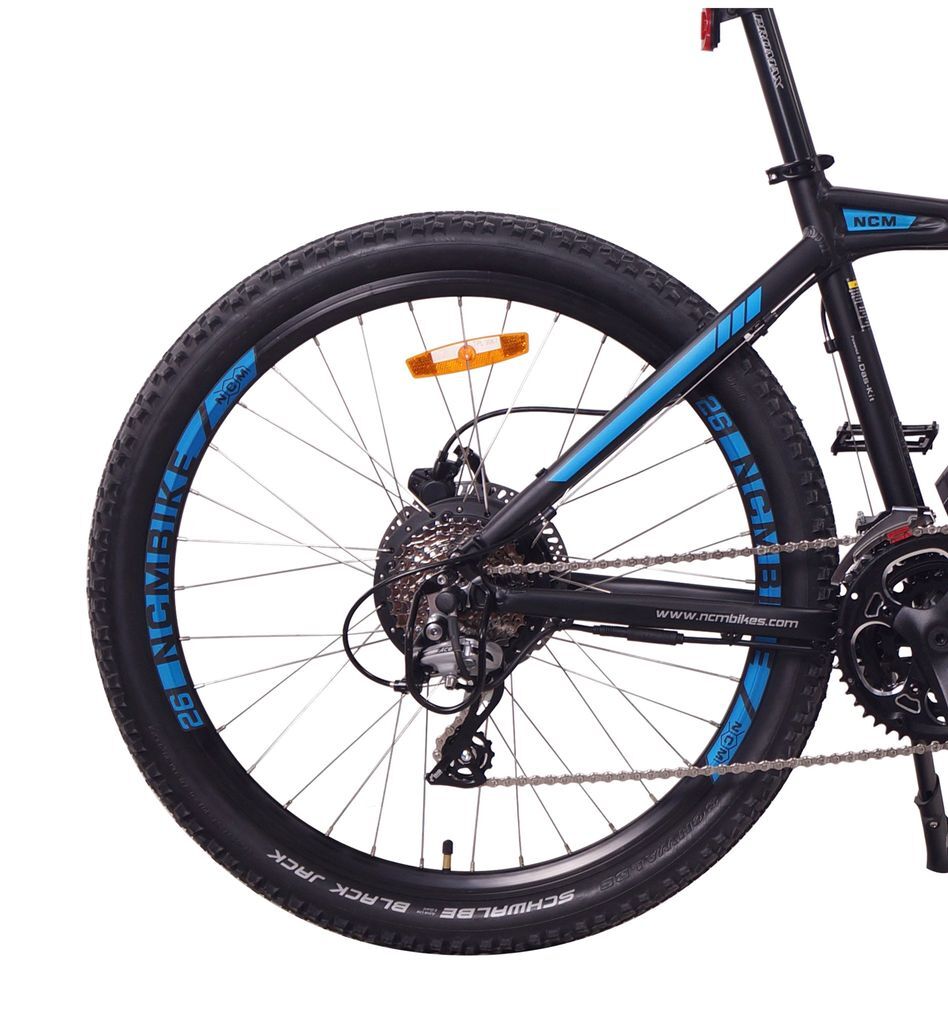

Rear derailleur Shimano Acera, 8 speed Shimano Altus, 7 speed Shimano Altus, 7 speed
Saddle Selle Royal, Lookin-A200UR, Black NCM Velo, VL-3410 NCM Velo, VL-3410
Tyre Schwalbe, Smart Sam 27.5×2.25 Schwalbe, Smart Sam 27.5×2.25 Arisun Mount Cronos
Handle Grips Velo, VLG-1189D3 139mm Velo, VLG-1189D3 139mm Velo, VLG-1189D3
Pedal Wellgo, B087 Wellgo, B087 Wellgo, B087
Range Up to 150 km (depending on
terrain conditions & power level settings)		 Up to 120 km (depending on
terrain conditions & power level settings)		 Up to 110 km (depending on
terrain conditions & power level settings)
Weight 28/29kg 28/29kg 25 kg

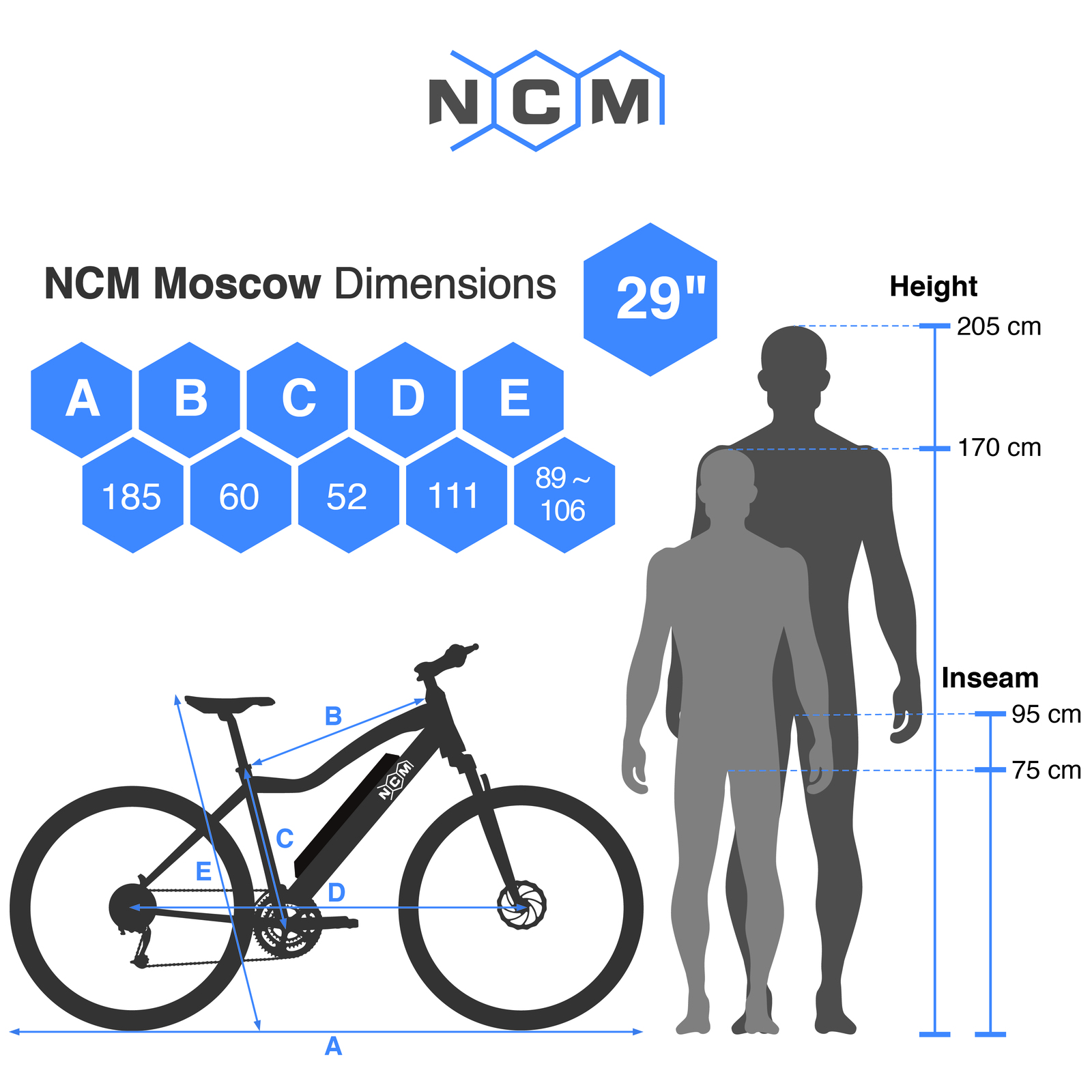

Sizing Chart

CM   A B C D E F
  Stand Over Height Wheel Base Frame Size Min / Max Seat Height Reach Overall Length
Moscow 27.5  Medium 162-187 76.2 108 48.2 86.8-103 53 180
Moscow 29  Large 175-193 82.5 110 50.8 88.9-106 53 185


Warranty

  • 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
  • 2 year warranty on the bike frame
  • Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
  • Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.


About NCM

NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.


Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

  • 1 x NCM Moscow plus e-bike
  • 1 x Sans charger
  • 1 x tool kit


(P-MOSCOW-PLUS)

SKU P-MOSCOW-PLUS
Brand NCM
Shipping Weight 32.0000kg
Shipping Width 0.250m
Shipping Height 0.800m
Shipping Length 1.440m
Shipping Cubic 0.288000000m3
Unit Of Measure ea
