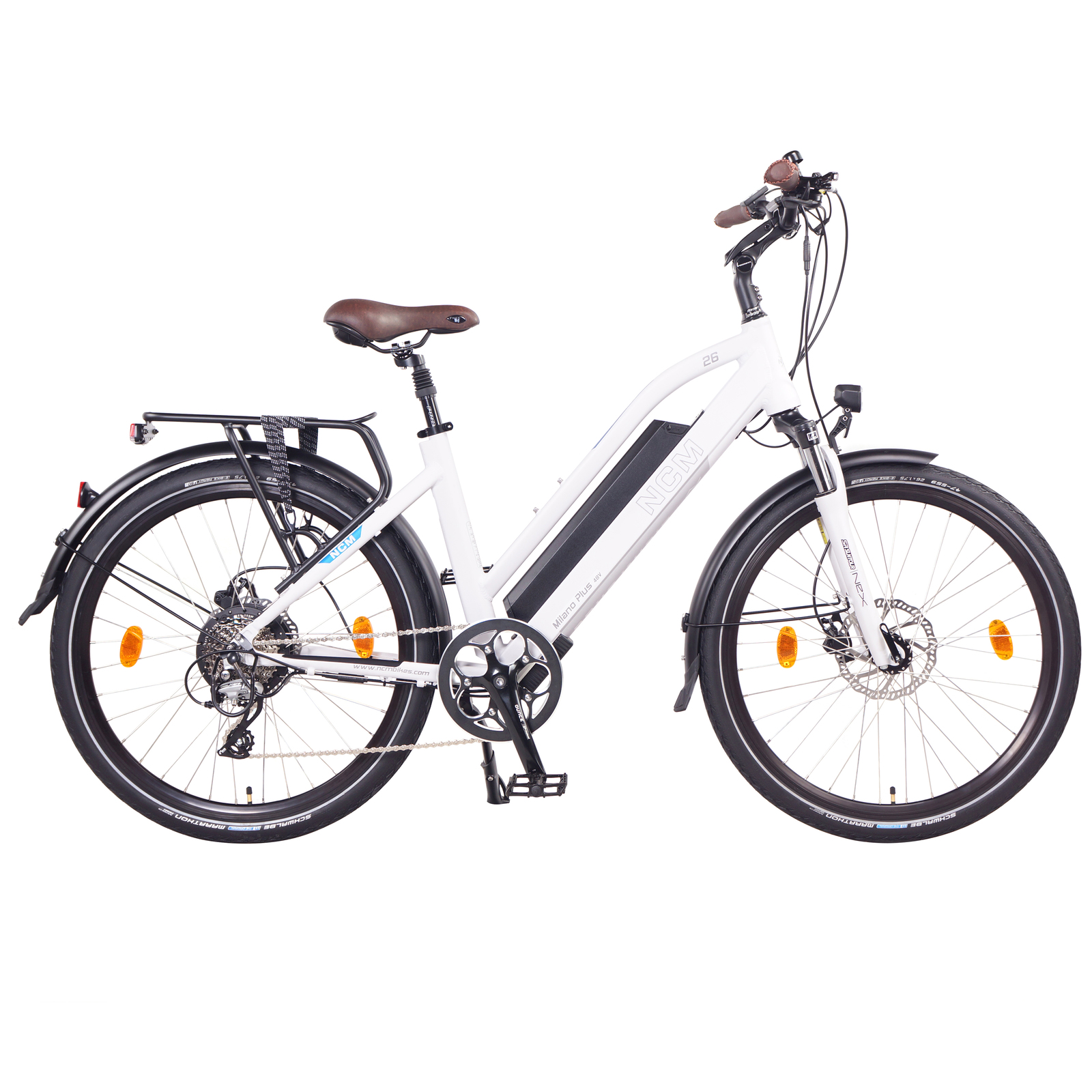

NCM Milano +


Introduction

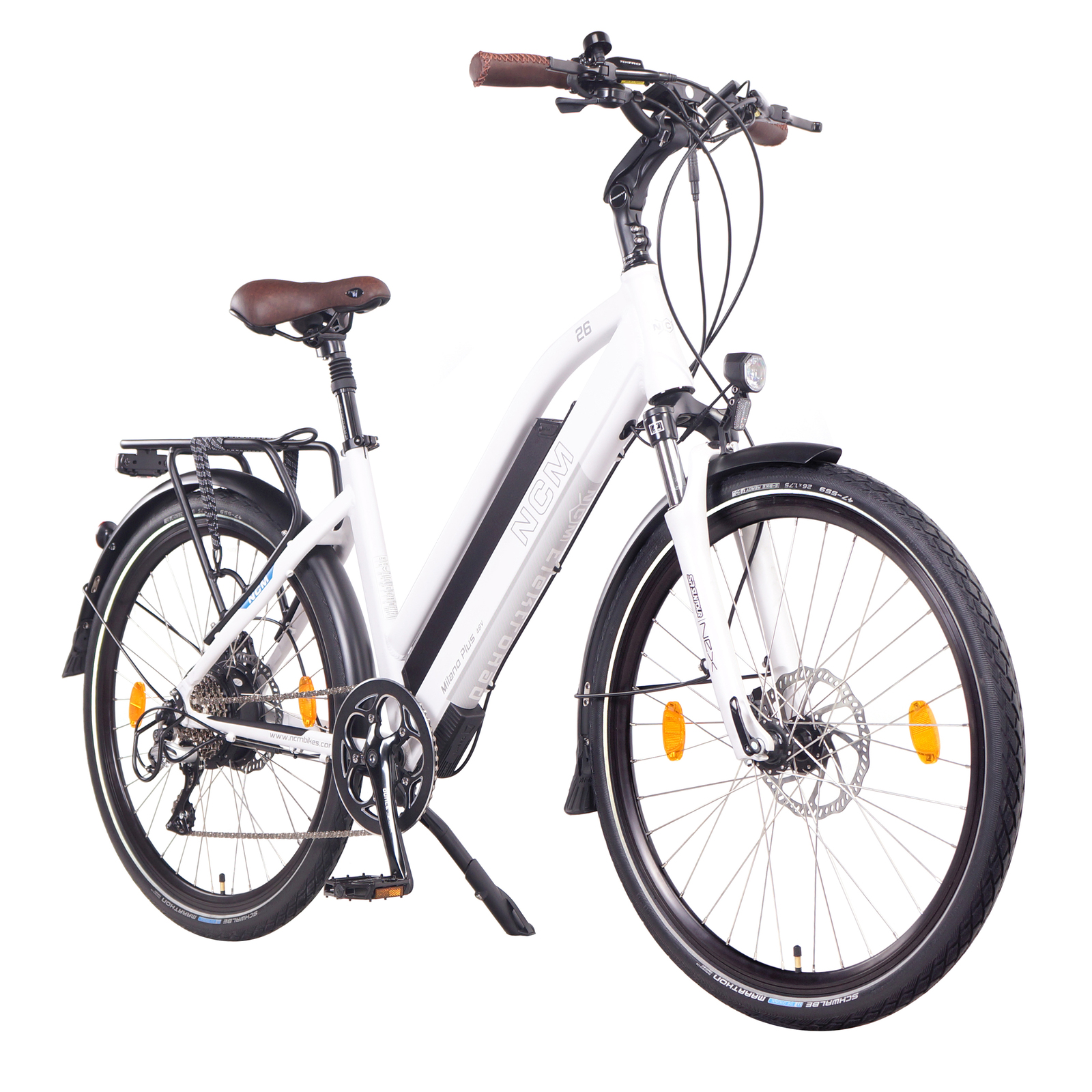

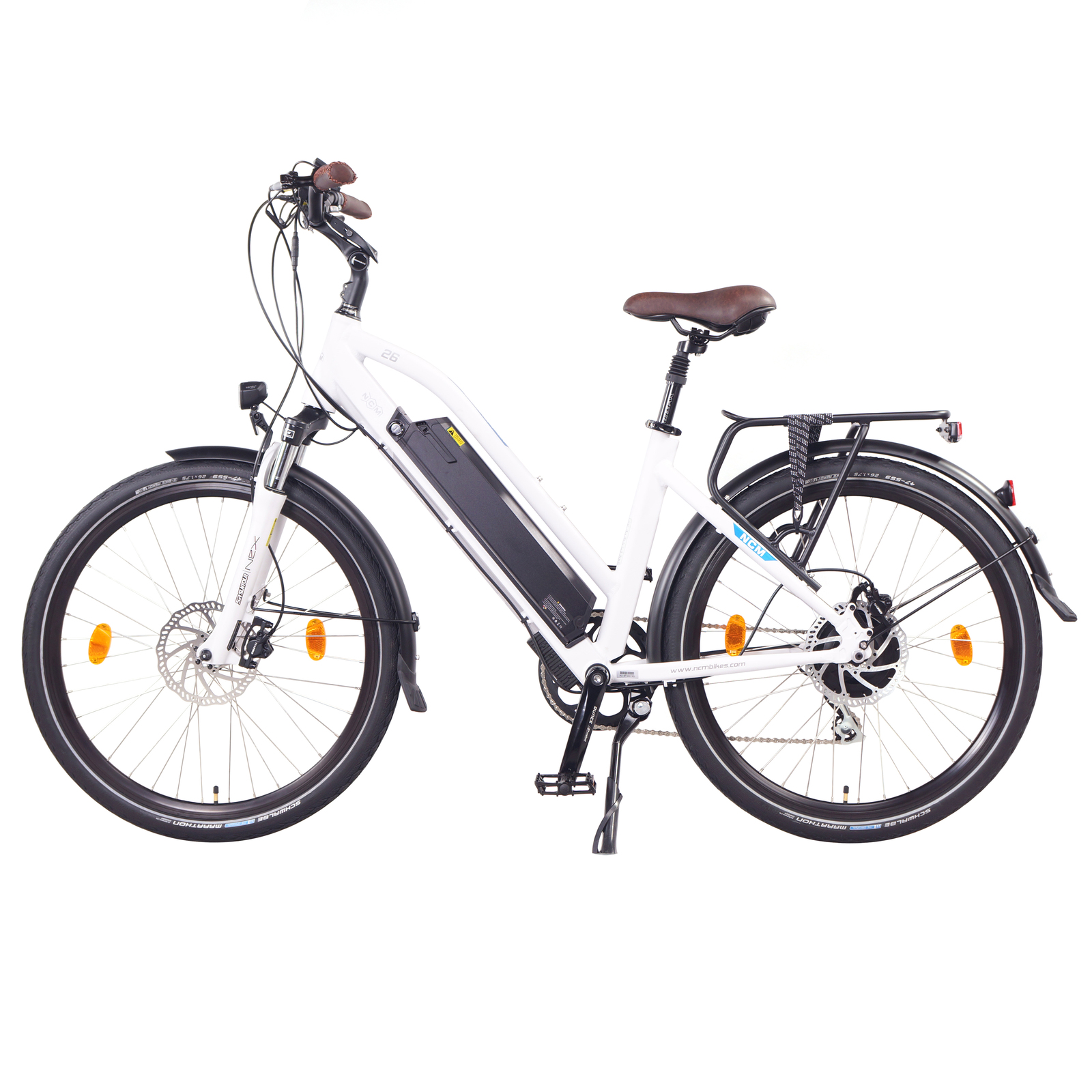

Inspired by the Fashion Capital of Europe the NCM Milano + is designed to ride as elegant as it looks. This E-bike is designed with a tough aluminium frame, and an adjustable handlebar/stem setup, with a sprung seat post for improved comfort. The low top tube, makes the bike sturdy and strong yet comfortable and easy to mount whilst providing additional protection to the battery.

Key Features

  • Ergonomic bicycle Grips
  • Comfortable sitting posture
  • All important controls easily accessible
  • Supplied with 48V to deliver a high output power
  • Up to 500W Peak Motor Power
  • Over 768Wh capacity for a longer distance
  • Up to 150 km Battery Range (depending on terrain conditions & power level settings)

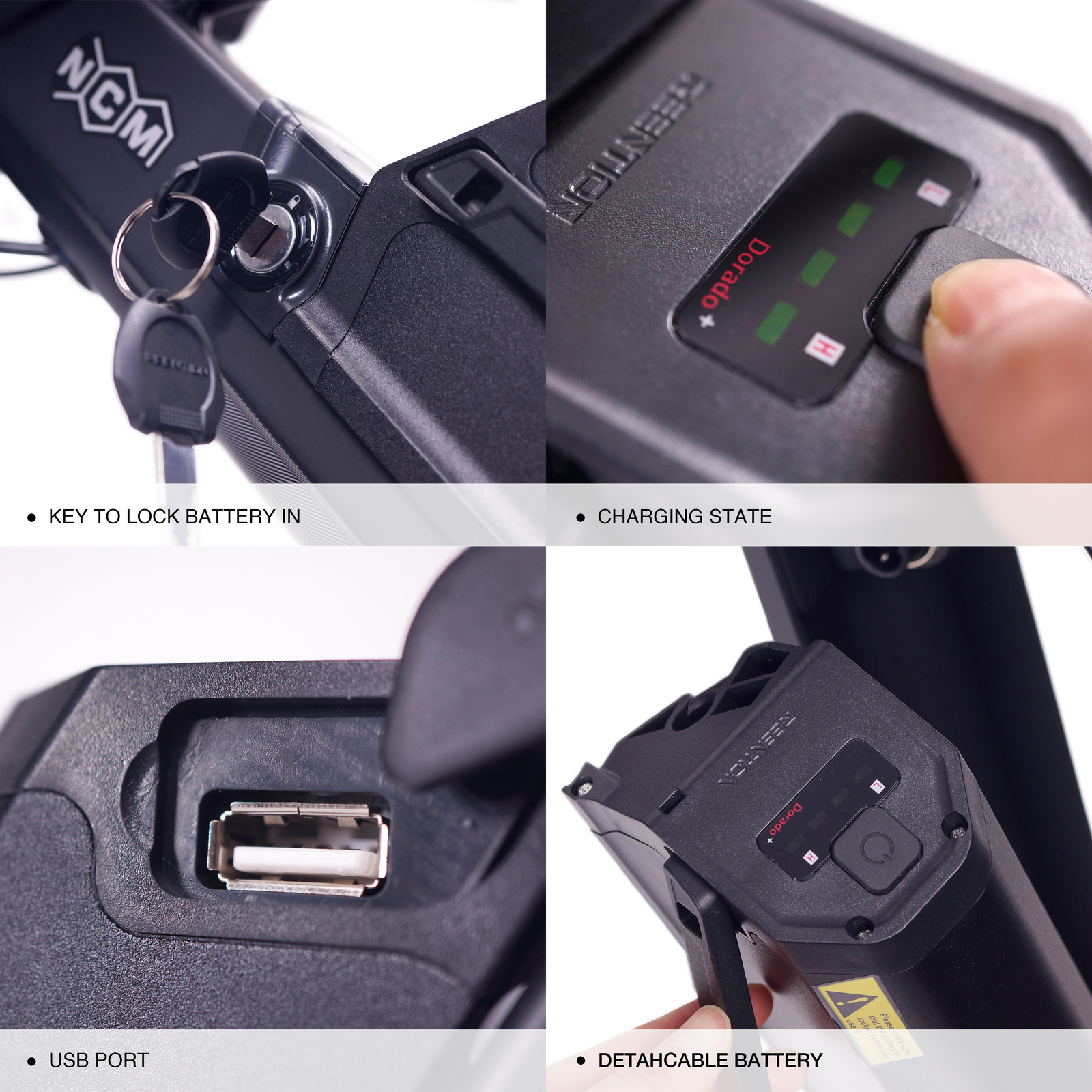

  • Easily removable battery so you can charge it anywhere
  • A built-in USB port with 5V to charge mobile phones
  • Equipped with Throttle and Pedal assist

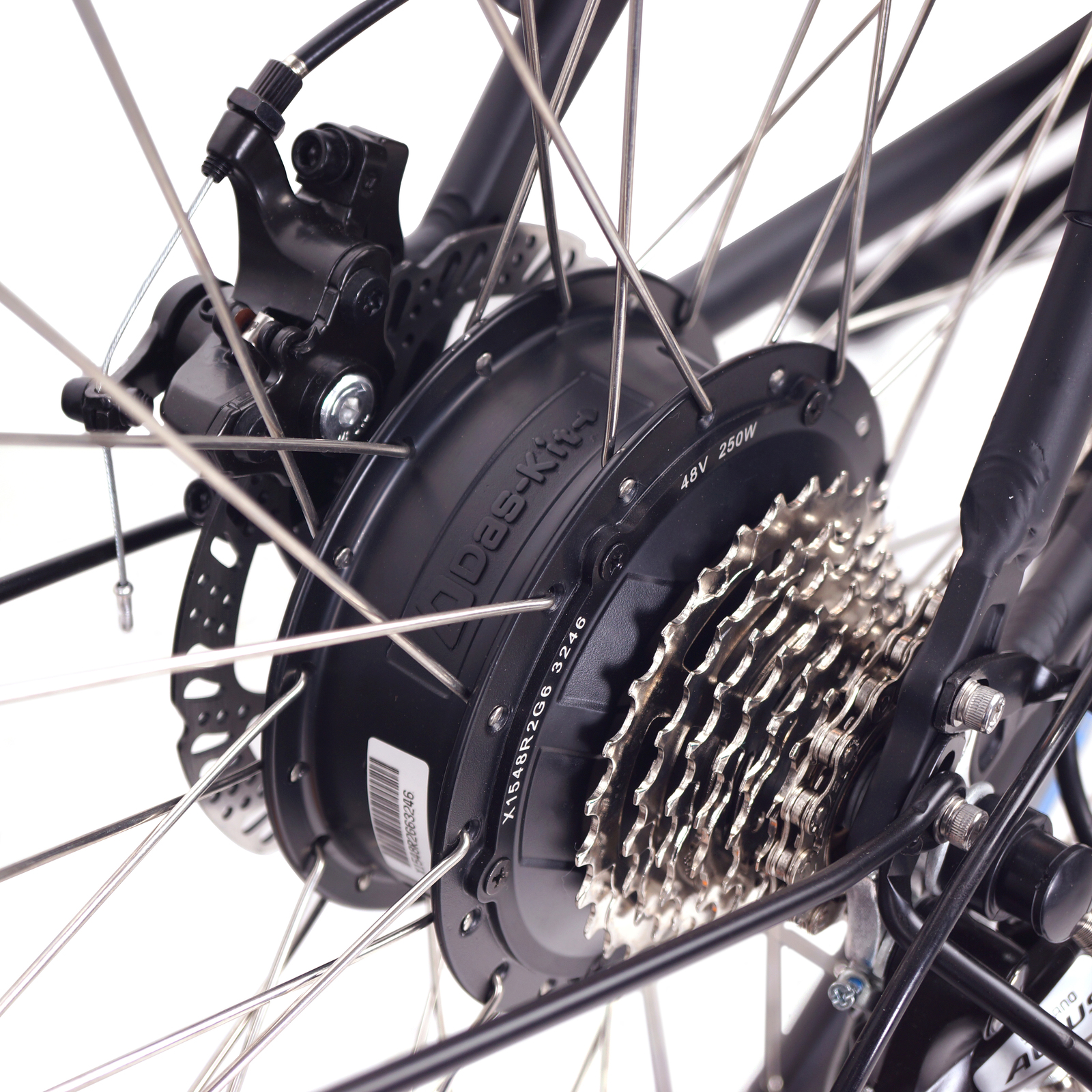

Das-Kit 300W-500W Motor

Das-Kit C7 Display

48V battery with USB

Schwalbe Tires

Specifications

  NCM Milano NCM Milano + NCM Milano Max
Motor Das-Kit X15 motor, 48V, 300W,
500W Peak Power, max speed 32 km/h		 Das-Kit X15 motor, 48V, 300W,
500W Peak Power, max speed 32 km/h		 Bafang MAX Mid drive motor, 36V 300W,
500W Peak Power, max speed 32 km/h
Battery DEHAWK i5-4813H, 624Wh, 48v 13Ah, with USB Port DEHAWK i5-4816P, 768Wh, 48v 16Ah, Panasonic, with USB Port DEHAWK i5-3616P, 576Wh, 36v 16Ah, with USB Port
Display Das-Kit L7, LCD Display Das-Kit C7, LCD Display Befang MAX C966, LCD Display
Charger DC483DE 48V 3A DC483DE 48V 3A DC362DE 36V 2A
Frame Alu. 6061, 457/480MM Alu. 6061, 457/480MM Alu. 6061, 480MM
Forks SUNTOUR NEX 63mm SUNTOUR NEX 63mm ZOOM, 106
Braking System Tektro Mechanical Disc Tektro Hydraulic Disc

Fr: Tektro Mechanical Disc.

Rr: V Brake + Shimano Coaster-Brake

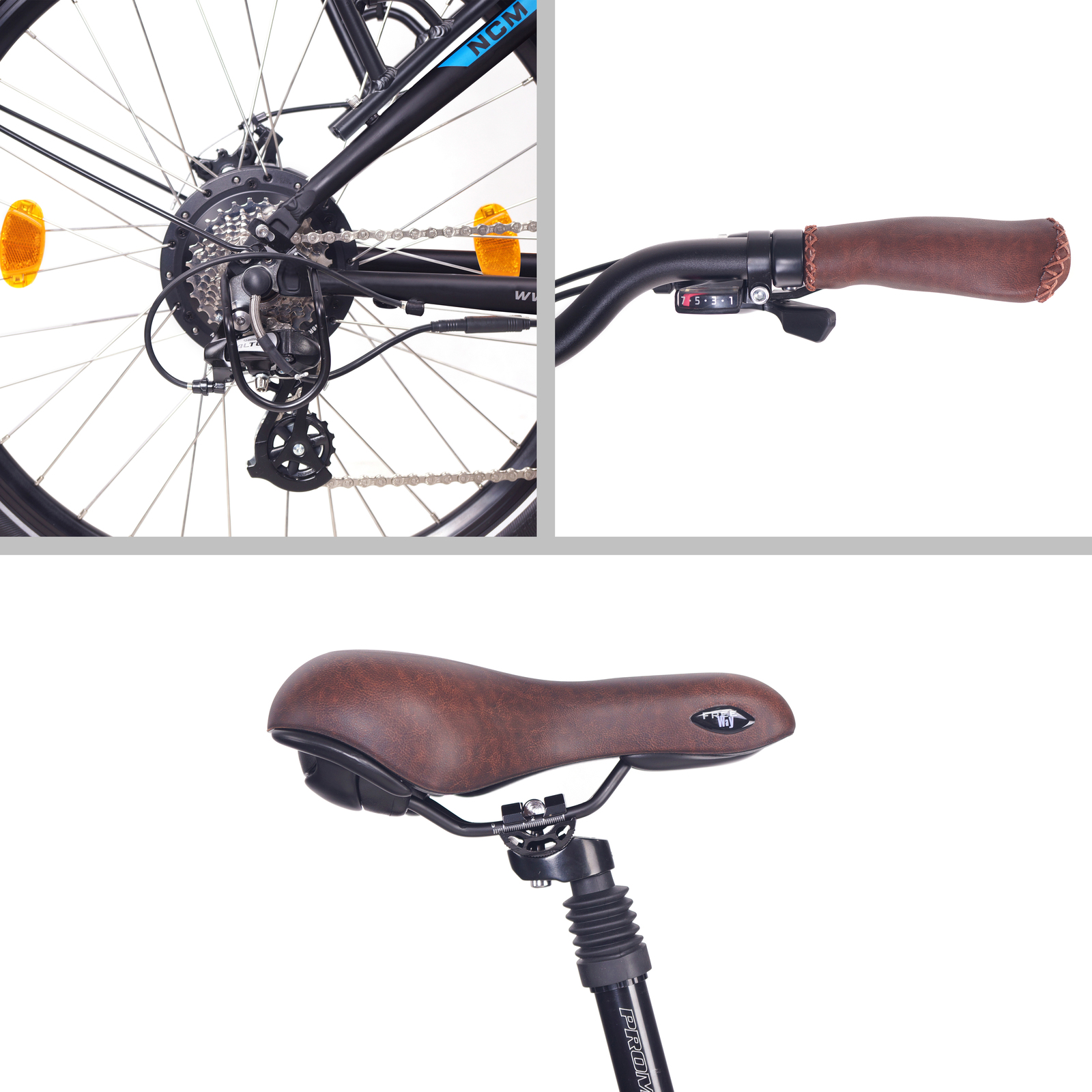

Gear Selector Shimano Altus M310, 7 speed Shimano Acere M360, 8 speed Shimano Acere M360, 8 speed
Front Derailleur N/A N/A N/A

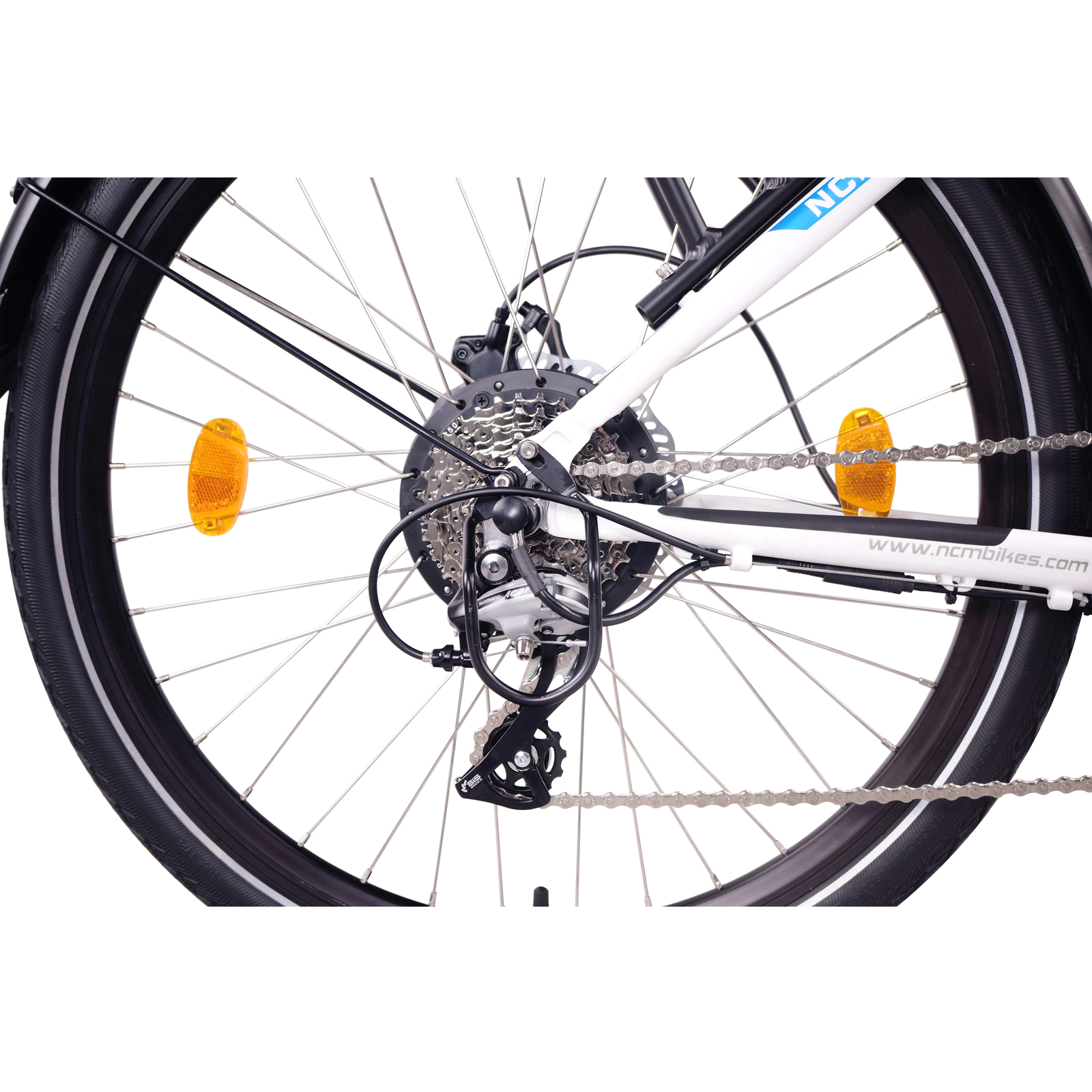

Rear derailleur Shimano Altus M310, 7 speed Shimano Acere M360, 8 speed Shimano Acere M360, 8 speed
Saddle Selle Royal Gel Saddle, Brown Selle Royal Gel Saddle, Brown Selle Royal Gel Saddle, Brown
Tyre Shwalbe Marathon, 26×1.75 28×1.5  Shwalbe Marathon, 26×1.75 28×1.5 Shwalbe Marathon, 28×1.5
Handle Grips Velo, Brown Leather Velo, Brown Leather Velo, Brown Leather
Pedal Wellgo, B087 Wellgo, B087 Wellgo, B087
Range Up to 120 km (depending on
terrain conditions & power level settings)		 Up to 150 km (depending on
terrain conditions & power level settings)		 Up to 120 km (depending on
terrain conditions & power level settings)
Weight 27 kg 27 kg 27 kg

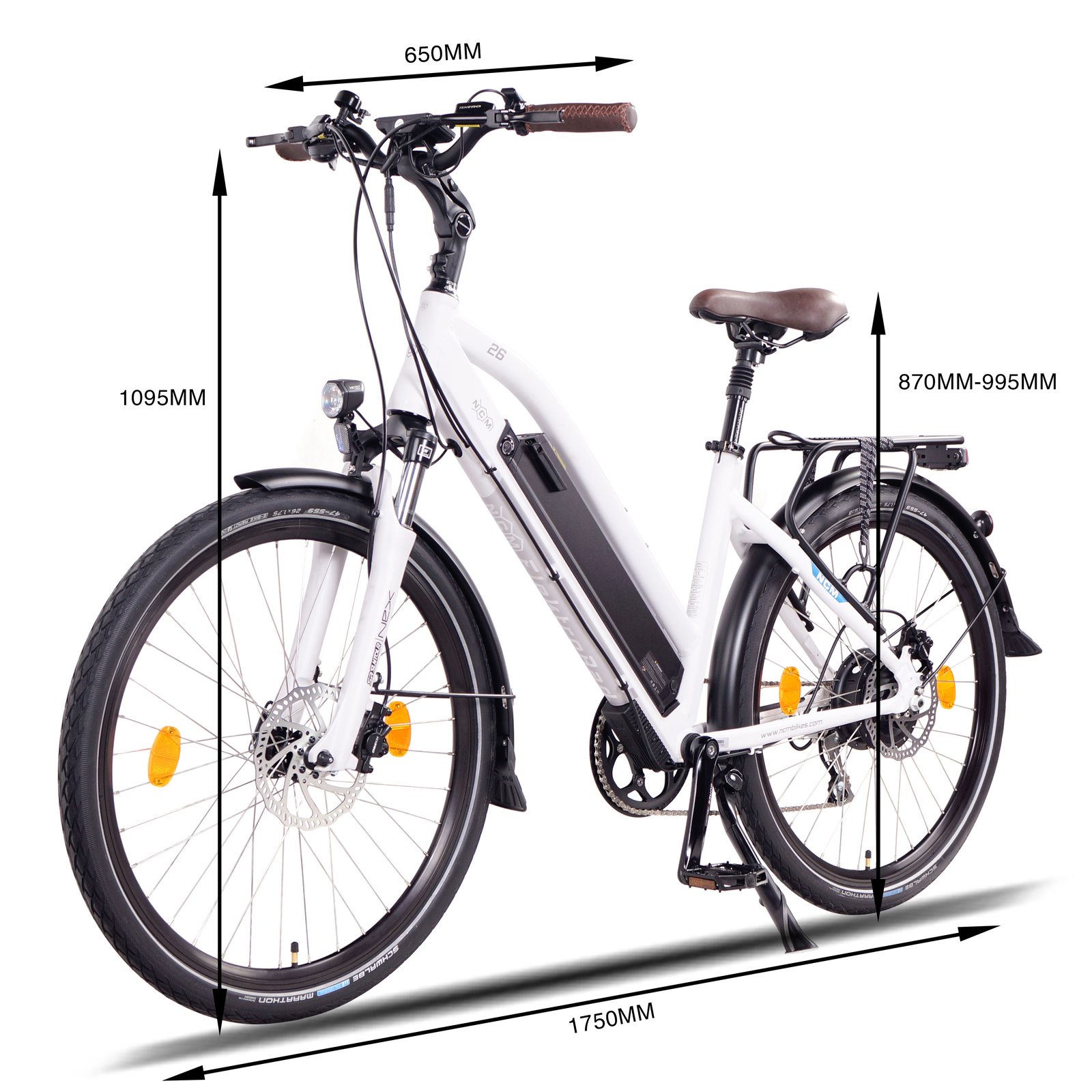

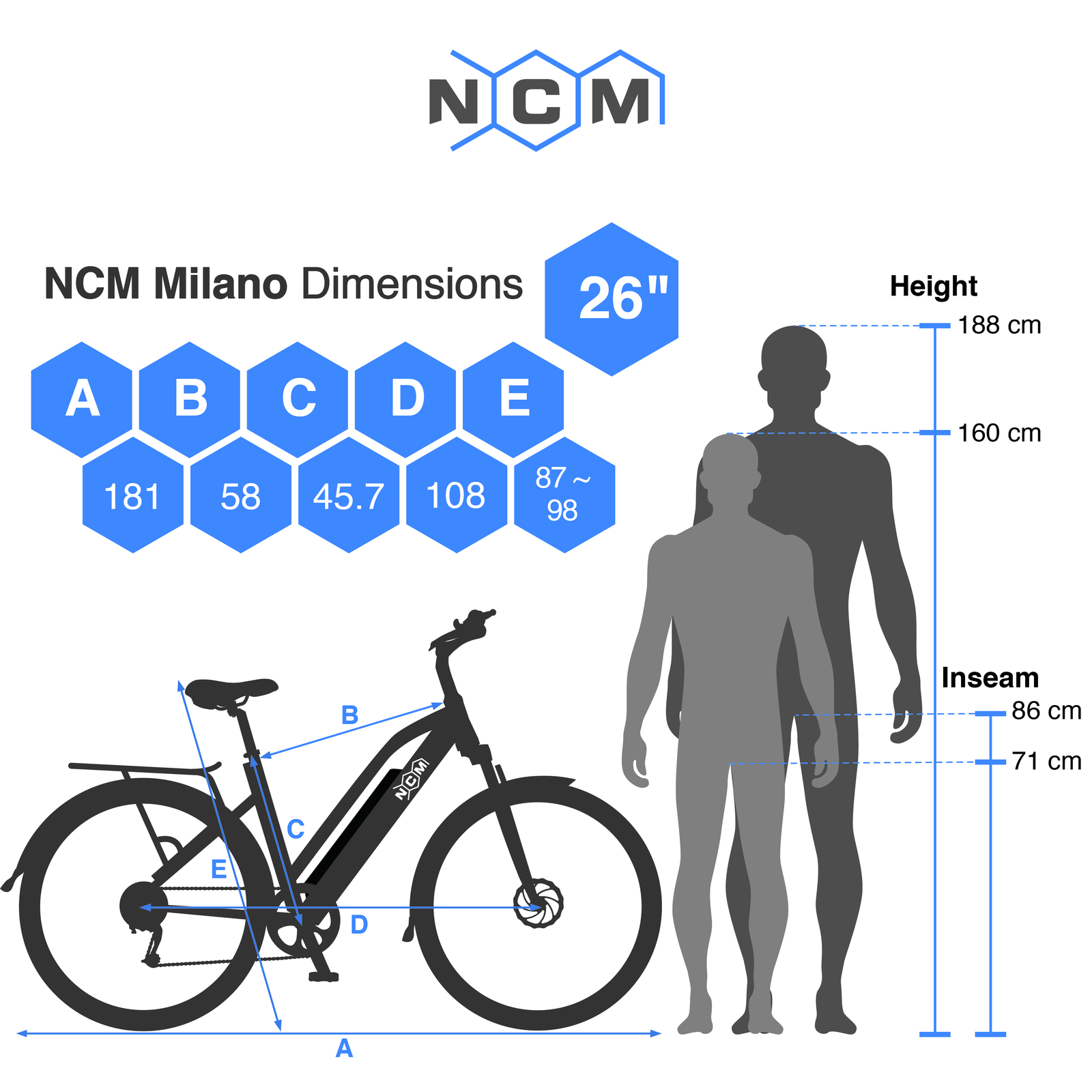

Sizing Chart

cm   A B C D E F
  Stand Over Height Wheel Base Frame Size Min / Max Seat Height Reach Overall Length
Milano 26 160-188 N/A 108 45.7 87/98 58 181
Milano 28 170-198 N/A 101 48 93/104 60 182
Milano Max 28 170-198 N/A 101 48 93/104 60 182


Warranty

  • 1-year warranty on all electronic parts (including battery, motor, controller, display, lights)
  • 2-year warranty on the bike frame
  • Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
  • Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.


About NCM

NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.


Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

  • 1 x Milano + E-bike

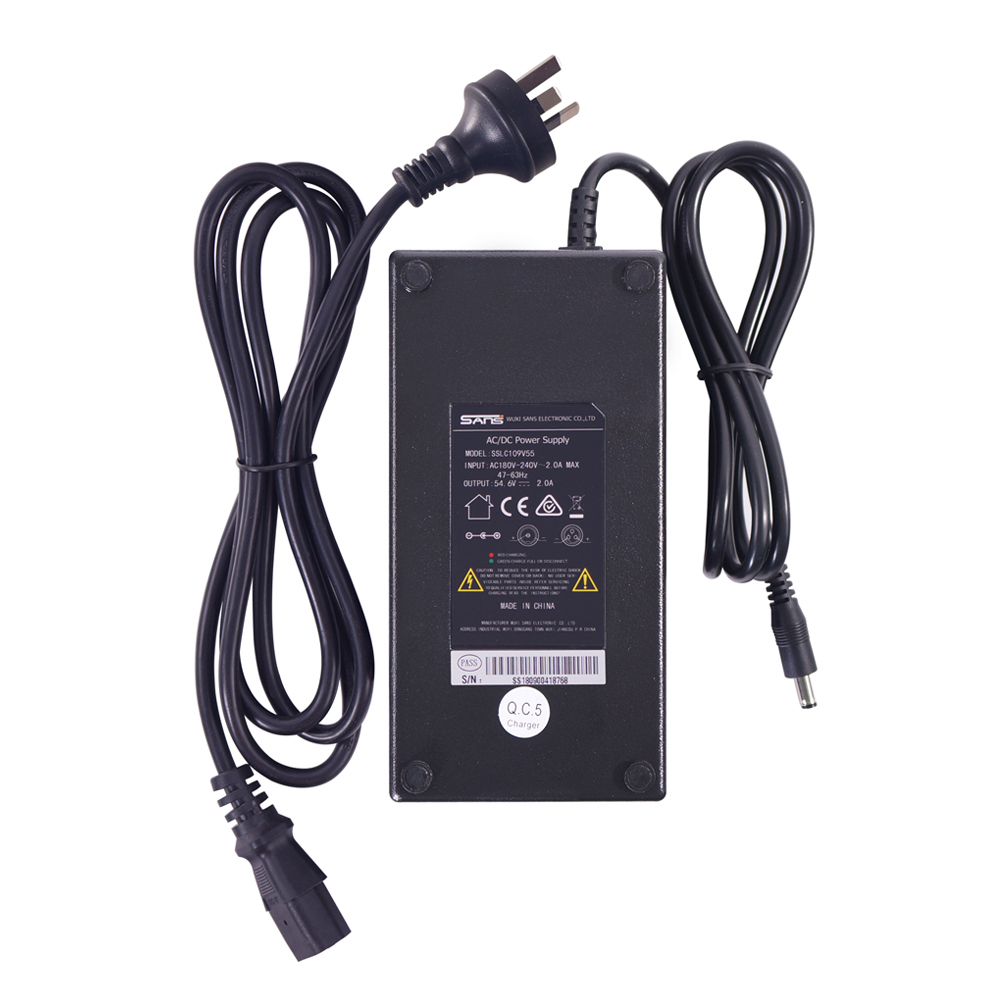

  • 1 x DC483DE 48v charger
  • 1 x tool kit


(P-MILANO-PLUS)

SKU P-MILANO-PLUS
Brand NCM
Shipping Weight 32.0000kg
Shipping Width 0.250m
Shipping Height 0.800m
Shipping Length 1.440m
Shipping Cubic 0.288000000m3
Unit Of Measure ea
